Category: Drying equipment

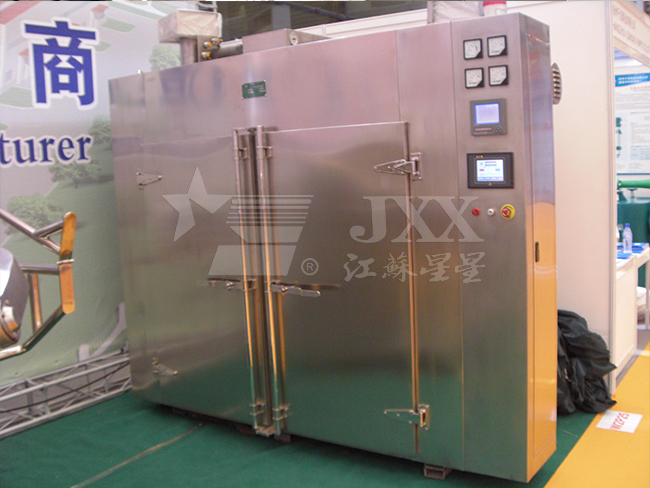

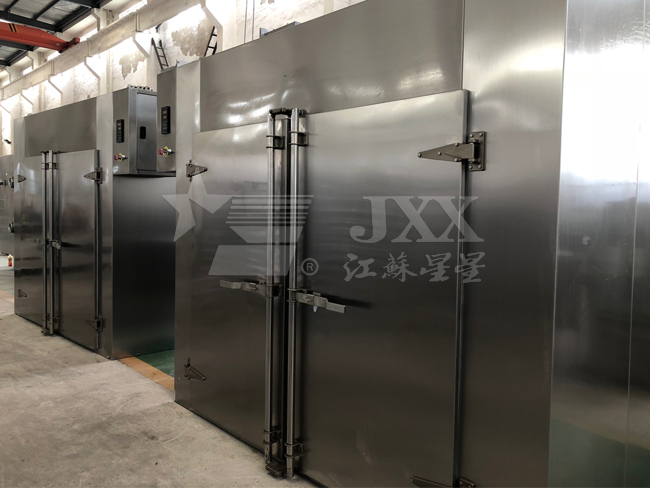

Introduction: 1、 CharacteristicsThe GR series hot air circulation oven utilizes forced ventilation, with most of the hot air circulating inside the oven, resulting in high thermal efficiency. And it can adjust the dehumidification air volume for different material…
The hot air circulation oven is suitable for drying, dehydrating, heating and solidifying materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, heavy industry, etc. Such as raw materials, traditional Chinese medicine, Chinese herbal medicine decoction pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits and vegetables, sausages, plastic resins, electrical components, baking paints, etc.
3、 Main technical parameters
|
Serial Number |
Model |
Standard |
Technical Parameter |
Accessory |
Total weight
(Kg)
|
|||||||||||
|
|
|
|
Evaporation the measure of area
(m2)
|
Effective volume
(m3)
|
Every time Drying capacity
(Kg)
|
Radiator the measure of area
(m2)
|
Steam Consumption
(Kg/h)
|
Electric heating power
(kW)
|
Temperature Range
(℃)
|
Steam Pressure
(Mpa)
|
Circulating wind
Machine power
(kW)
|
Inside the box Temperature difference
(℃)
|
External dimensions WxDxH (mm) |
Should be equipped with
Drying car
(vehicle)
|
Should be equipped with
Baking dish
(Only)
|
|
|
1 |
CT-C-O |
GRB-7 |
7 |
1.3 |
60 |
15 |
10 |
6-9 |
60
|
140 Adjustable |
0.2
|
0.6
|
0.45 |
±1 |
1380×1200×2000 |
1 |
24 |
820 |
|
2 |
CT-C-I |
GRB-14 |
14 |
2.6 |
120 |
23 |
23 |
12-15 |
|
|
0.45 |
±2 |
2260×1200×2000 |
2 |
48 |
1580 |
|
3 |
CT-C-II |
GRB-27 |
27 |
4.9 |
240 |
48 |
44 |
24-28 |
|
|
0.45×2 |
±2 |
2260×2200×2000 |
4 |
96 |
1800 |
|
4 |
CT-C-III |
GRB-41 |
41 |
7.4 |
360 |
72 |
66 |
42 |
|
|
0.45×3 |
±2 |
2360×3200×2000 |
6 |
144 |
2100 |
|
5 |
CT-C-IV |
GRB-54 |
54 |
10.3 |
480 |
96 |
86 |
55 |
|
|
0.45×4 |
±2 |
4280×2200×2270 |
8 |
192 |
280 |
Note: All devices are constantly being improved, and the selection of devices is subject to the new version information.
The outer wall materials of the box include A3 steel and stainless steel; The inner wall materials include aluminum alloy and stainless steel. The materials for drying cars include A3 steel and stainless steel. Baking tray materials include aluminum and stainless steel. If the oven is used within the temperature range of 140 ℃ to 350 ℃, it can be designed non-standard.
